    UL Listed Fire Rated Door Closer 7016BC/DA

    INQUIRY
  • 2025-03-15 17:05:40

  • 7000 Series Door Closer

TECHNICAL INFORMATION & FUNCTION

Width of Door ( mm ) Max.

   1400mm

Weight of Door ( kg ) Max.

   15-150 kg

Back check Function

   Yes

Delay action Function   Yes

Max. Open Angle

   180°

Hold -Open

  Optional (with Hold Open Slide Arm)

Fire Door

   Yes, UL 3 hours Fire Rated door closer, ANSI Grade 1

Closing Speed Adjustment

Speed 1

   Max Open Angle~10°


Speed 2

   10°~0°

Applicable Temperature

  -30℃ To 60℃

Applicability

   Can be used for left and right-hand doors

Various Finish

   SILVER, GOLD,BROWN 8014, WHITE 9016, BRONZE 8080,BEIGE 1015, CHOCKLET 1019,BLACK 9005 ,other color upon request

Dimension of Main Body

Length

   325


Width

   47


Height

   51.5

Weight ( kg )

   3.20kg

Passed Durability Test

 2000,000 cycles


Product Size
Code

Material

Packing

Carton Size
7016BC/DAAluminum6 sets/carton

43*35*17.5cm

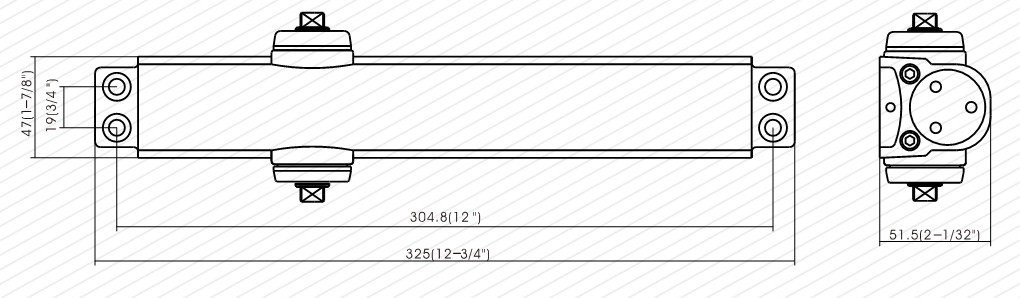

Type
Body Dimension
ABCDE
7016BC/DA325304.8194751.5
