UL ANSI Door Closer - 5016BC/DA

TECHNICAL INFORMATION & FUNCTION
Width of Door ( mm ) Max.		1400mm
Weight of Door ( kg ) Max.		20-150 kg
Back check Function		Yes
Max. Open Angle		180°
Hold -Open		Optional (with Hold Open Slide Arm，or Hold Open Arm)
Fire Door		Yes, UL 3 hours Fire Rated door closer, ANSI Grade 1
Closing Speed Adjustment	Speed 1	Max Open Angle~10°
	Speed 2	10°~0°
Applicable Temperature		-30℃ To 60℃
Applicability		Can be used for left and right-hand doors
Various Finish		SILVER, GOLD,BROWN 8014, WHITE 9016, BRONZE 8080,BEIGE 1015, CHOCKLET 1019,BLACK 9005 ,other color upon request
Dimension of Main Body	Length	246
	Width	44.5
	Height	69.5
Weight ( kg )		2.45kg
Passed Durability Test		2000,000 cycles

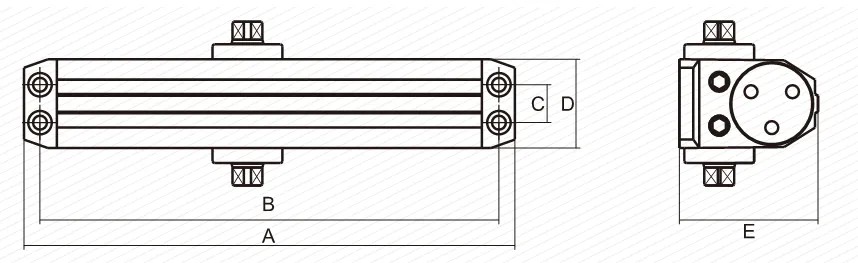

Product Size

Code	Material	Packing	Carton Size
5016BC	Aluminum	6 sets/carton	32.53219.5cm
