Rim Panic Exit Device
DATE SHEET

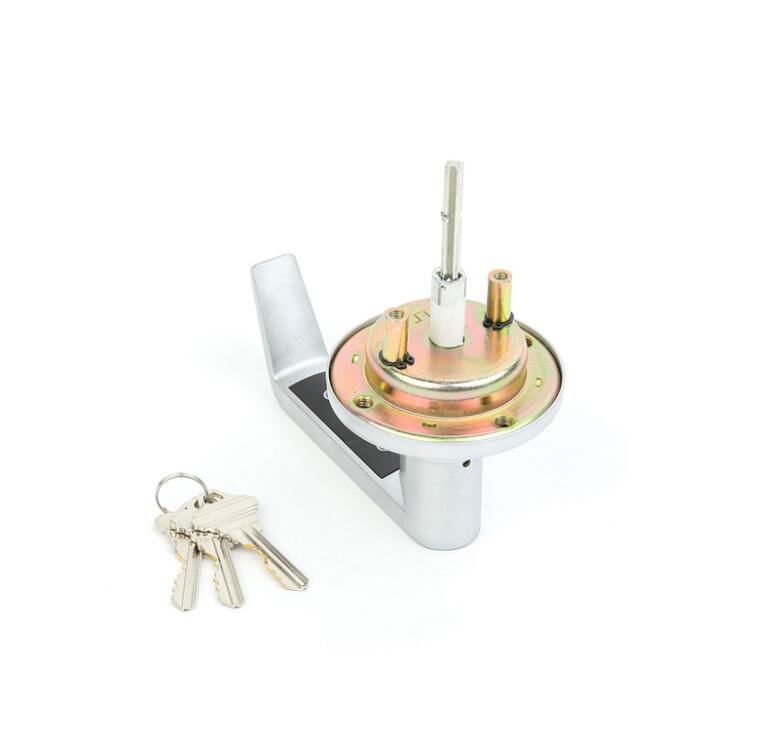

External handle lock 006
006 SS (Stainless Steel Handle)
006P (Zinc Handle)
006-85 (Stainless Steel Handle)
Suit for Panic Exit Device
Features:
Non handed
Cylindrical body hardened steel, Heavy duty tailpiece
For 1-3/4"and 2-1/4" doors
Finishes:26D.32D,US3.US4
Related Exit Devices
UL500S/UL500P/DK1510S/DK1510P/F5000S/F5000P

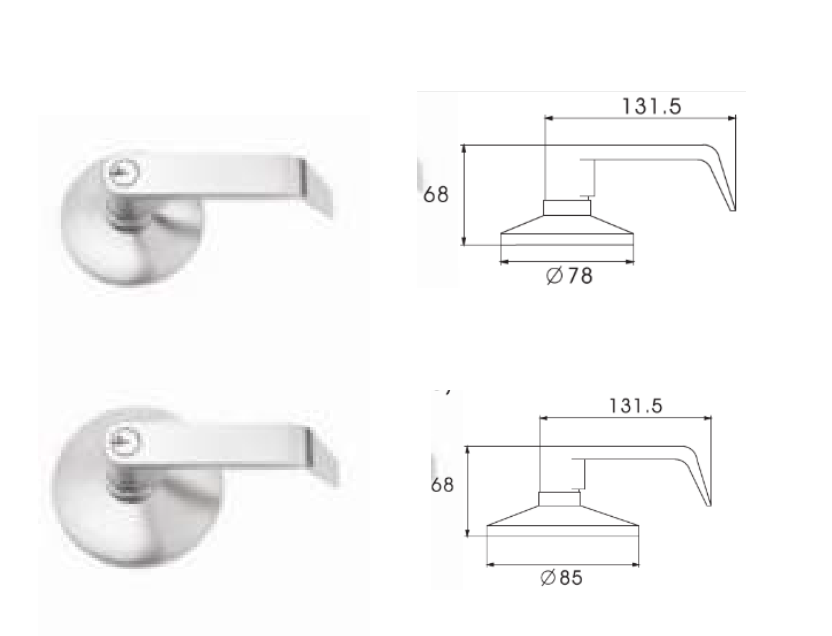

● 006 SS Material: Stainless steel
1 Rosette Diameter:78mm
Lever Length:131.5mm
Lever Projection:68mm
Finish: Satin polish
Non-Handed
Cylinder: Standard Schlage Keyway
Fits standard door preps
Spindle Structure
Supplied with 3 keys
ADA Compliant
● 006 P Material: Zinc
1 Rosette Diameter:78mm
Lever Length:131.5mm
Lever Projection:68mm
Finish: Satin polish
Non-Handed
Cylinder: Standard Schlage Keyway
Fits standard door preps
Spindle Structure
Supplied with 3 keys
ADA Compliant
● 006-85 SS Material: Stainless steel
1 Rosette Diameter:85mm
Lever Length:131.5mm
Lever Projection:68mm
Finish: Satin polish
Non-Handed
Cylinder: Standard Schlage Keyway
Fits standard door preps
Spindle Structure
Supplied with 3 keys
ADA Compliant
