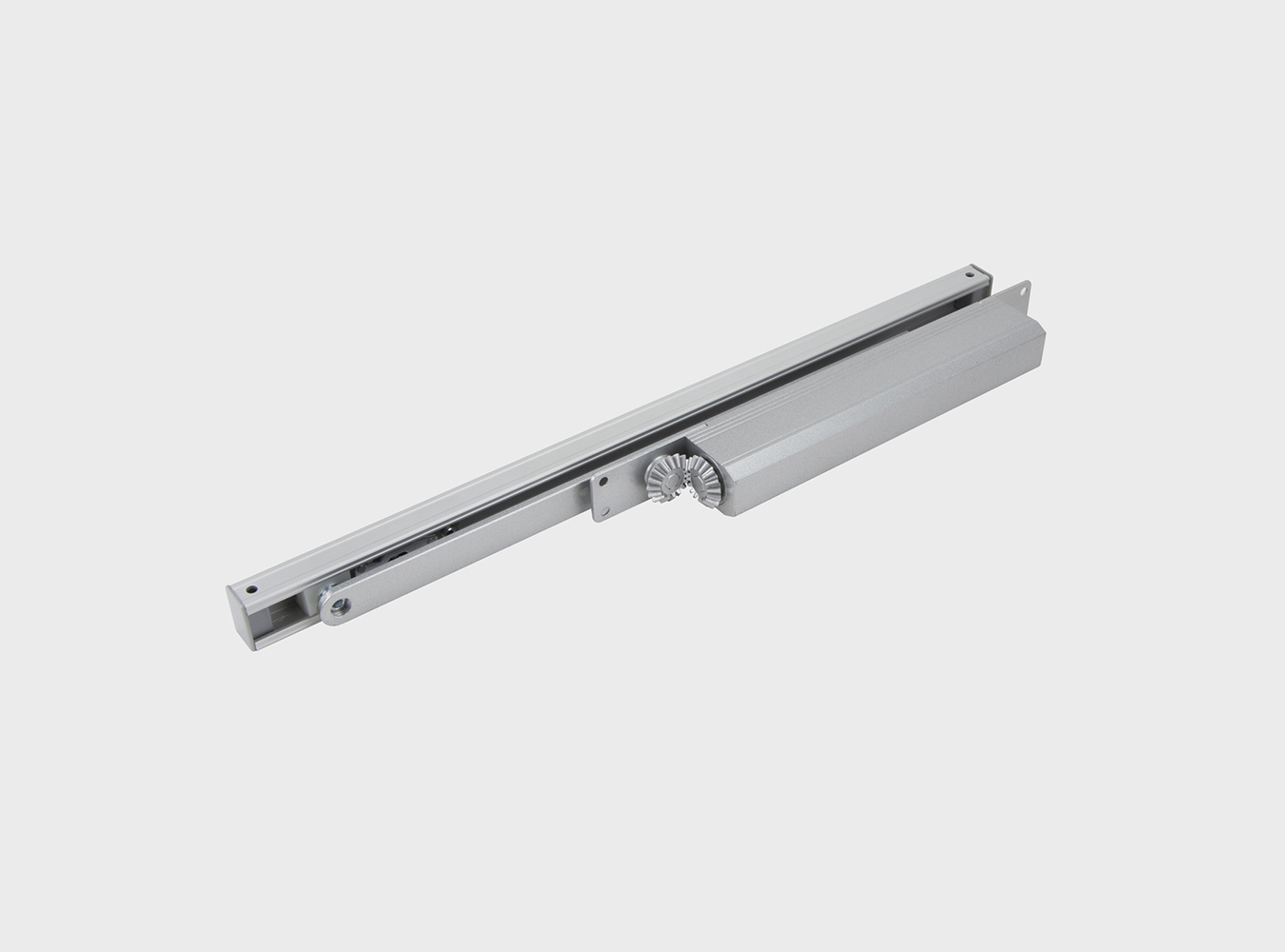

Heavy Duty Door Closer
Extrusion Aluminum door closer body.
Power size adjustable EN2- EN4, Suit for Max. 85 kg door weight.
Cam Action structure, provides high efficiency easy open andreliable closing power.
for door application Non-handed, Can be used for left and right-hand doors.Two separate valves adjustable closing & latching speed.
Hold Open or Non-Hold open function available on every closer.
Compliant with European standard ENl154.
TECHNICAL INFORMATION & FUNCTION | ||
Width of Door ( mm ) Max. | 1400m | |
Weight of Door ( kg ) Max. | 60-85 kg | |
Back check Functio | N/A | |
Max. Open Angle | 105° | |
Hold -Open | Optional | |
Fire Door | Yes, UL 3 hours Fire Rated door closer | |
Closing Speed Adjustment | Speed 1 | Max Open Angle~10° |
Speed 2 | 10°~0° | |
Applicable Temperature | -30℃ To 60℃ | |
Applicability | Can be used for left and right-hand doors | |
Various Finish | SILVER, GOLD, BRONZE ,,other color upon request | |

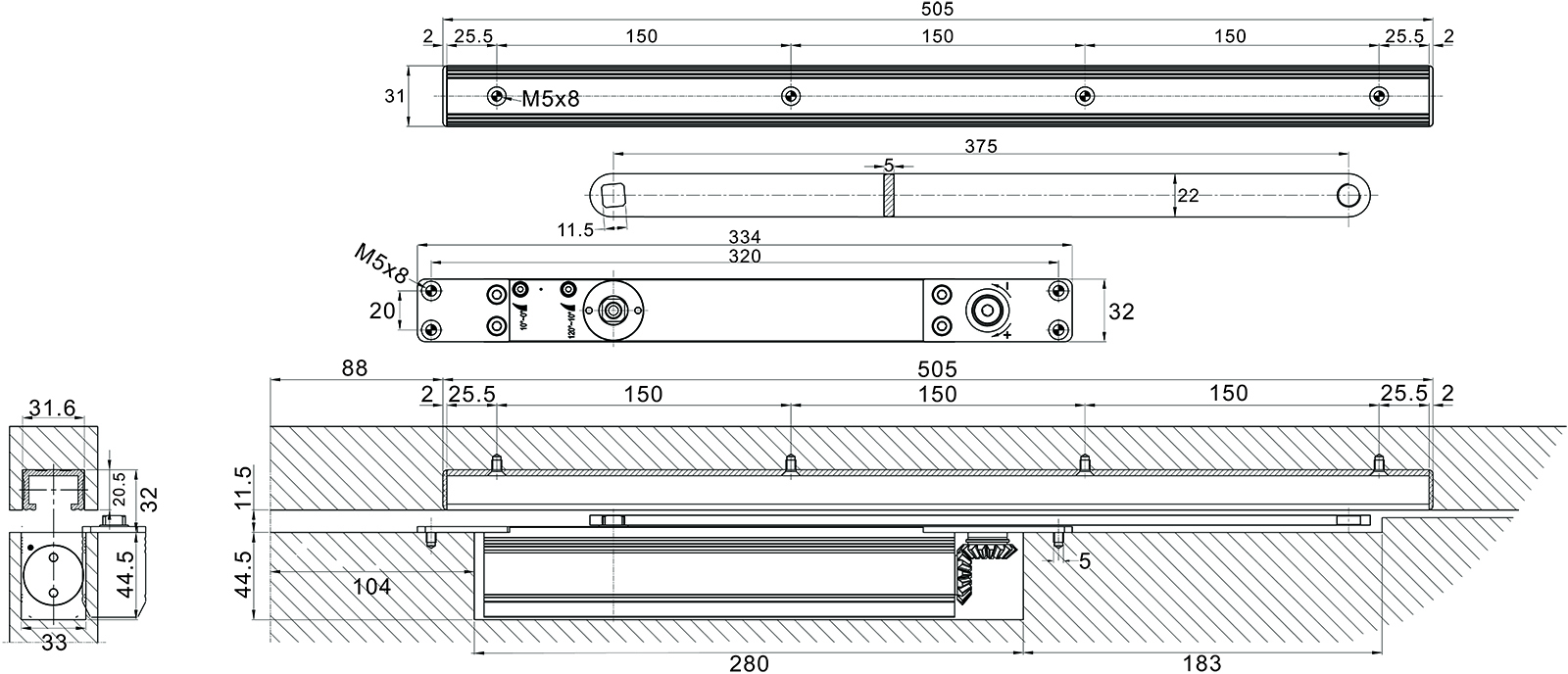

Dimension of Main Body | Length | 334 |
Width | 32 | |
Height | 45 | |
Weight ( kg ) | 2.1kg | |
Passed Durability Test | 500,000 cycles | |
