UL CE Door Closer - 534BC

TECHNICAL INFORMATION & FUNCTION
Width of Door ( mm ) Max.		1100mm
Weight of Door ( kg )		65~85 kg
Back check Function		YES
Max. Open Angle		180°
Hold -Open		Optional (with Hold Open Slide Arm)
Fire Door		Yes, UL 3 hours Fire Rated door closer, EN 1634
Closing Speed Adjustment	Speed 1	Max Open Angle~10°
	Speed 2	10°~0°
Applicable Temperature		-30℃ To 60℃
Applicability		Can be used for left and right-hand doors
Various Finish		SILVER, GOLD,BROWN 8014, WHITE 9016, BRONZE 8080,BEIGE 1015, CHOCKLET 1019,BLACK 9005 ,other color upon request

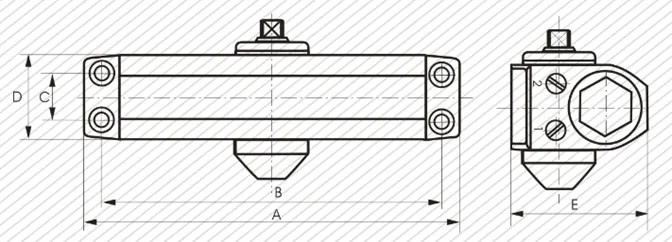

Dimension of Main Body	Length	223
	Width	44.5
	Height	72
Weight ( kg )		2.10kg
Passed Durability Test		500,000 cycles

Product Size

Code	Material	Packing	Carton Size
534BC	Aluminum	10 sets/carton	513119cm
