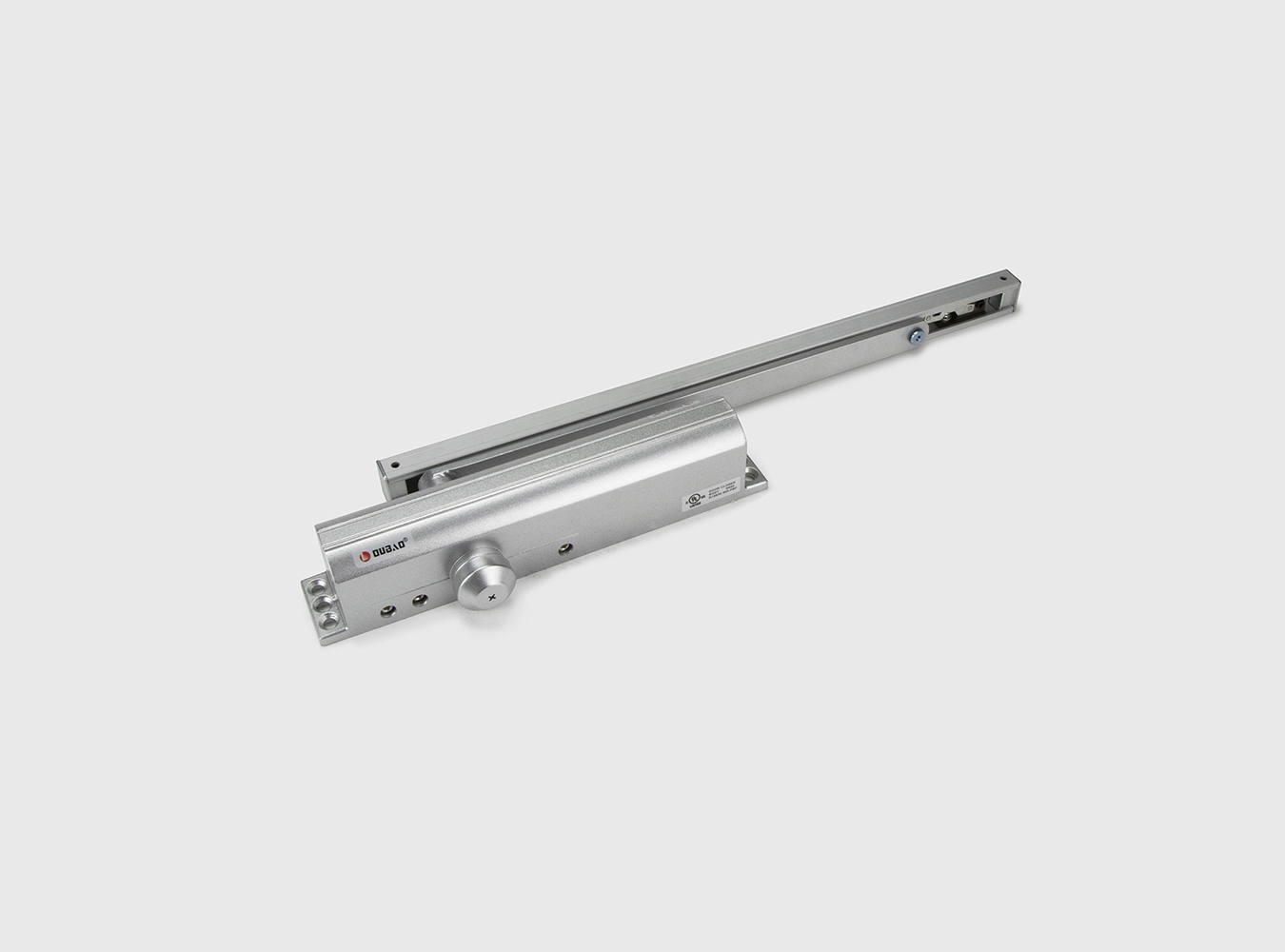

Door Closer with Sliding Arm 9016SL

TECHNICAL INFORMATION & FUNCTION
Width of Door ( mm ) Max.		1250mm
Weight of Door ( kg ) Max.		15-120 kg
Back check Function		Yes
Delay action Function		Optional
Max. Open Angle		120°
Hold -Open		Yes(with Hold Open Slide Arm)
Fire Door		Yes, UL 3 hours Fire Rated door closer, ANSI Grade 1
Closing Speed Adjustment	Speed 1	Max Open Angle~10°
	Speed 2	10°~0°
Applicable Temperature		-30℃ To 60℃
Applicability		Can be used for left and right-hand doors
Various Finish		SILVER, GOLD,BROWN 8014, WHITE 9016, BRONZE 8080,BEIGE 1015, CHOCKLET 1019,BLACK 9005 ,other color upon request

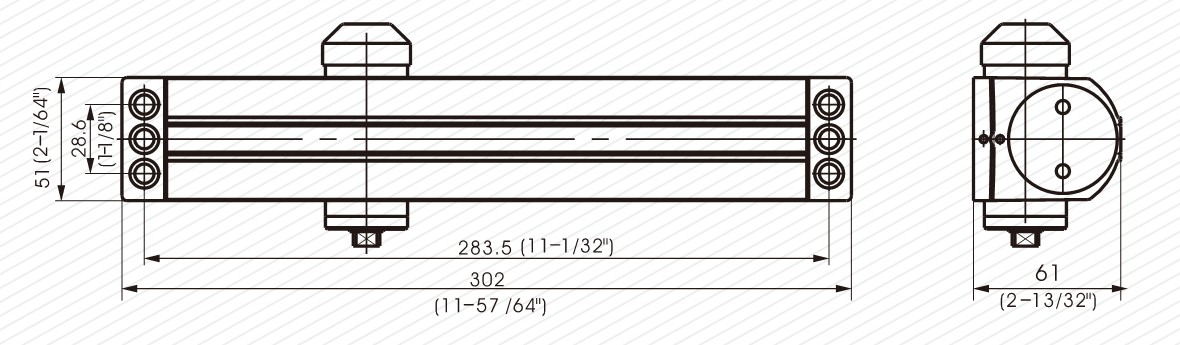

Dimension of Main Body	Length	302
	Width	51
	Height	61
Weight ( kg )		3.43kg
Passed Durability Test		2000,000 cycles

Product Size

Code	Material	Packing	Carton Size
9016SL	Aluminum	6 sets/carton	53.2*29.20 cm
