UL Door Closer - 603

TECHNICAL INFORMATION & FUNCTION
Width of Door ( mm ) Max.		950mm
Weight of Door ( kg ) Max.		65 kg
Back check Function		N/A
Max. Open Angle		180°
Hold -Open		Optional
Fire Door		Yes, UL 3 hours Fire Rated door closer, EN1634
Closing Speed Adjustment	Speed 1	Max Open Angle~10°
	Speed 2	10°~0°
Applicable Temperature		-30℃ To 60℃
Applicability		Can be used for left and right-hand doors
Various Finish		SILVER, GOLD,BROWN 8014, WHITE 9016, BRONZE 8080,BEIGE 1015, CHOCKLET 1019,BLACK 9005 ,other color upon request
Dimension of Main Body	Length	186
	Width	44.5
	Height	67
Weight ( kg )		1.81kg
Passed Durability Test		500,000 cycles

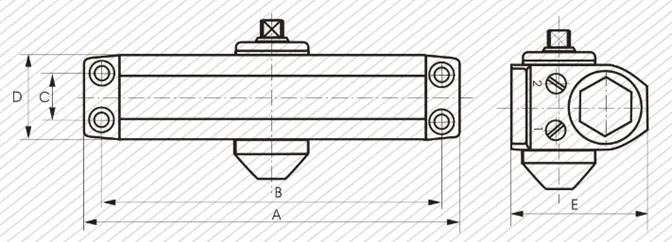

Product Size

Code	Material	Packing	Carton Size
603	Aluminum	10 sets/carton	513119 cm
