UL Door Closer - 601

TECHNICAL INFORMATION & FUNCTION
Width of Door ( mm ) Max.		<750mm
Weight of Door ( kg ) Max.		30 kg
Back check Function		N/A
Max. Open Angle		180°
Hold -Open		Optional
Fire Door		Yes, UL 3 hours Fire Rated door closer
Closing Speed Adjustment	Speed 1	Max Open Angle~10°
	Speed 2	10°~0°
Applicable Temperature		-30℃ To 60℃
Applicability		Can be used for left and right-hand doors
Various Finish		SILVER, GOLD,BROWN 8014, WHITE 9016, BRONZE 8080,BEIGE 1015, CHOCKLET 1019,BLACK 9005 ,other color upon request
Dimension of Main Body	Length	148
	Width	37
	Height	57.5
Weight ( kg )		1.12kg
Passed Durability Test		500,000 cycles

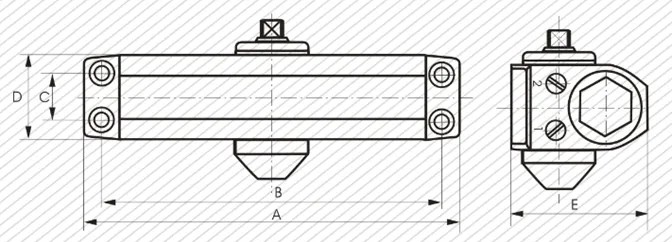

Product Size

Code	Material	Packing	Carton Size
601	Aluminum	10 sets/carton	462517.5 cm
