UL CE Door Closer - 503

500,000 Cycles Guaranteed In Endurance

Two separate valves adjustable closing & latching speed

Work Temperature-30℃ To 60℃

Optional Built-In HOLD OPEN

Universal Application: Standard, Top-Jamb

Parallel Arm installation (P.A. Bracket be provided upon

Request))

TECHNICAL INFORMATION & FUNCTION
Width of Door ( mm ) Max.		850mm
Weight of Door ( kg ) Max.		40-65kg
Back check Function		YES
Max. Open Angle		180°
Hold -Open		YES
Fire Door		N/A
Closing Speed Adjustment	Speed 1	Max Open Angle~10°
	Speed 2	10°~0°
Applicable Temperature		-30℃ To 60℃
Applicability		Can be used for left and right-hand doors
Various Finish		SILVER, GOLD,BROWN 8014, WHITE 9016, BRONZE 8080,BEIGE 1015, CHOCKLET 1019,BLACK 9005 ,other color upon request

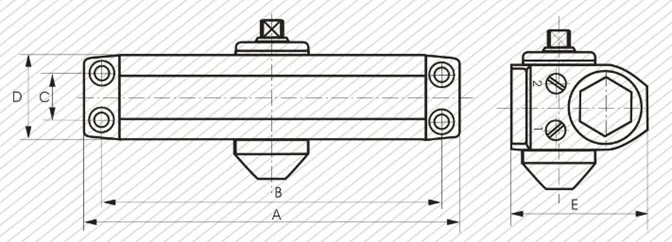

Dimension of Main Body	Length	223
	Width	37
	Height	44.5
Weight ( kg )		2.15 kg
Passed Durability Test		500,000 cycles

Product Size

Code	Material	Packing	Carton Size
503	Aluminum	10 sets/carton	513119cm
