500 Series Door Closer
Delay Action : Delay the door closing from maximum opening angle in door opening down to approximate 65° adjustable from 0 to approximate 1 minute, convenience for the handicapped and elderly.
TECHNICAL INFORMATION & FUNCTION | ||
Width of Door ( mm ) Max. | 1400mm | |
Weight of Door ( kg ) | 100~150 kg | |
Back check Function | N/A | |
Max. Open Angle | 180° | |
Hold -Open | Optional(with Hold-open slide Arm) | |
Delay Action | No | |
Closing Speed Adjustment | Speed 1 | Max Open Angle~10° |
Speed 2 | 10°~0° | |
Applicable Temperature | -30℃ To 60℃ | |
Applicability | Can be used for left and right-hand doors | |
Various Finish | SILVER, GOLD,BROWN 8014, WHITE 9016, BRONZE 8080,BEIGE 1015, CHOCKLET 1019,BLACK 9005 ,other color upon request | |
Dimension of Main Body | Length | 248 |
Width | 44.5 | |
Height | 72 | |
Weight ( kg ) | 2.15kg | |
Passed Durability Test | 500,000 cycles | |
| Code | Material | Packing | Carton Size |
| 506DA | Aluminum | 10 sets/carton | 51*31*19cm |

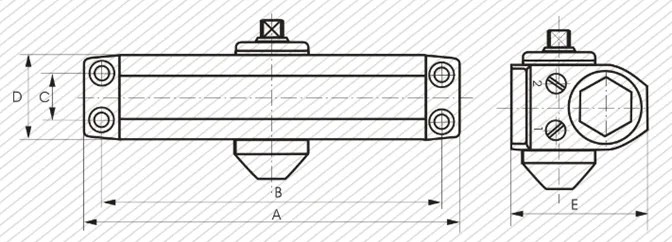

| Type | Body Dimension | ||||
| A | B | C | D | E | |
| 506DA | 248 | 230 | 19 | 44.5 | 72 |
