3000 Series Door Closer
TECHNICAL INFORMATION & FUNCTION | ||
Width of Door ( mm ) Max. | 1000mm | |
Weight of Door ( kg ) | 25~80kg | |
Back check Function | N/A | |
Max. Open Angle | 180° | |
Hold -Open | Optional | |
Fire Door | Yes, UL 3 hours Fire Rated door closer, EN1634 | |
Closing Speed Adjustment | Speed 1 | Max Open Angle~10° |
Speed 2 | 10°~0° | |
Applicable Temperature | -30℃ To 60℃ | |
Applicability | Can be used for left and right-hand doors | |
Various Finish | SILVER, GOLD,BROWN 8014, WHITE 9016, BRONZE 8080,BEIGE 1015, CHOCKLET 1019,BLACK 9005 ,other color upon request | |
Dimension of Main Body | Length | 220 |
Width | 53.5 | |
Height | 46 | |
Weight ( kg ) | 1.65kg | |
Passed Durability Test | 500,000 cycles | |
Product Size
| Code | Material | Packing | Carton Size |
| 3303 | Aluminum | 10 sets/carton | 27.5*24*30 cm |

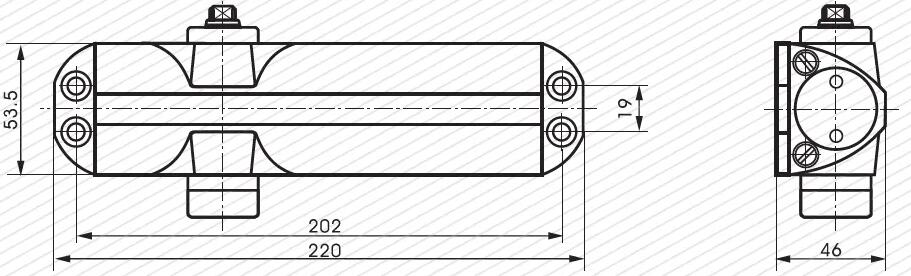

| Type | Body Dimension | ||||
| A | B | C | D | E | |
| 3303 | 220 | 202 | 19 | 53.5 | 46 |
