CE Door Closer-2025BC

TECHNICAL INFORMATION & FUNCTION
Width of Door ( mm ) Max.		1250mm
Weight of Door ( kg ) Max.		25~120 kg
Back check Function		Yes
Delay Action Function		N/A
Max. Open Angle		180°
Hold -Open		Yes , Optional No hold open:
Fire Door		Yes,EN1634,60 Minutes Fire Rated door closer
Closing Speed Adjustment	Speed 1	Max Open Angle~10°
	Speed 2	10°~0°
Applicable Temperature		-30℃ To 60℃
Applicability		Can be used for left and right-hand doors
Various Finish		SILVER, GOLD, BRONZE 8080, BLACK 9005 ,other color upon request

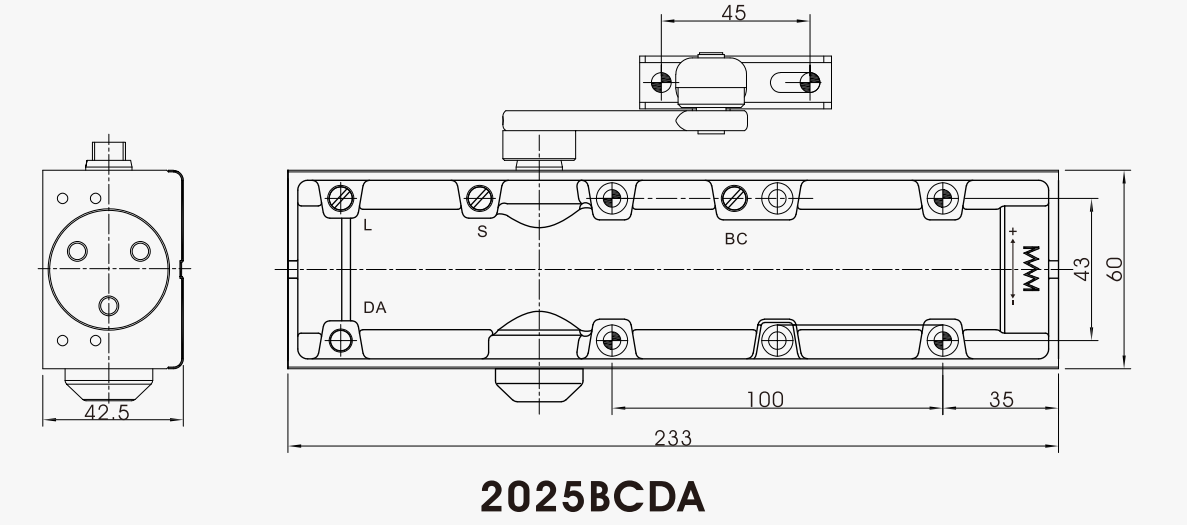

Dimension of Main Body	Length	233
	Width	42
	Height	60
Weight ( kg )		2.2kg
Passed Durability Test		500,000 cycles
