DOOR CLOSER-204

Hydraulic door closer with rack and pinion mechanism.

High quality components. With Needle bearing

Internal components in high quality steel.

Power adjustable Force EN 2~EN 4 by spring.

TECHNICAL INFORMATION & FUNCTION
Width of Door ( mm ) Max.		1100mm
Weight of Door ( kg ) Max.		25-85 kg
Back check Function		Yes
Delay Action Function		N/A
Max. Open Angle		180°
Hold -Open		Yes , Optional No hold open:
Fire Door		No
Closing Speed Adjustment	Speed 1	Max Open Angle~10°
	Speed 2	10°~0°
Applicable Temperature		-30℃ To 60℃
Applicability		Can be used for left and right-hand doors
Various Finish		SILVER, GOLD, BRONZE 8080, BLACK 9005 ,other color upon request

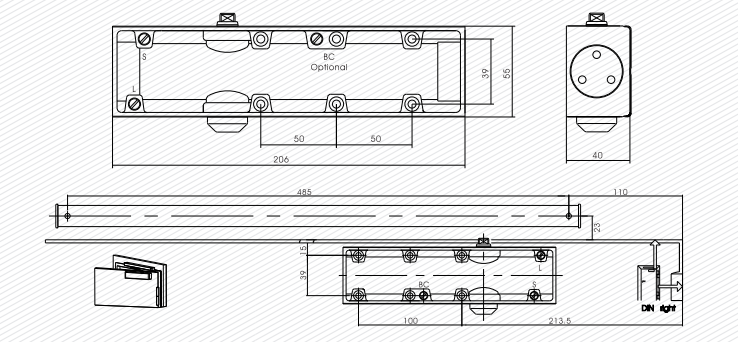

Dimension of Main Body	Length	206
	Width	40
	Height	55
Weight ( kg )		2.2kg
Passed Durability Test		500,000 cycles


Code	Material	Packing	Carton size
204	Aluminum	10 sets/ctn	532729 cm
