UL Door Closer-203SL

Hydraulic door closer with rack and pinion mechanism.

High quality components. With Needle bearing

Internal components in high quality steel.

Power adjustable Force EN 3 by spring.

Slide Hold Open Arm

TECHNICAL INFORMATION & FUNCTION
Width of Door ( mm ) Max.		950mm
Weight of Door ( kg ) Max.		40~65 kg
Back check Function		N/A
Delay Action Function		N/A
Max. Open Angle		140°
Hold -Open		Yes , Optional No hold open:
Fire Door		Yes,UL10C 3Hour Fire Rated door closer
Closing Speed Adjustment	Speed 1	Max Open Angle~10°
	Speed 2	10°~0°
Applicable Temperature		-30℃ To 60℃
Applicability		Can be used for left and right-hand doors
Various Finish		SILVER, GOLD, BRONZE 8080, BLACK 9005 ,other color upon request

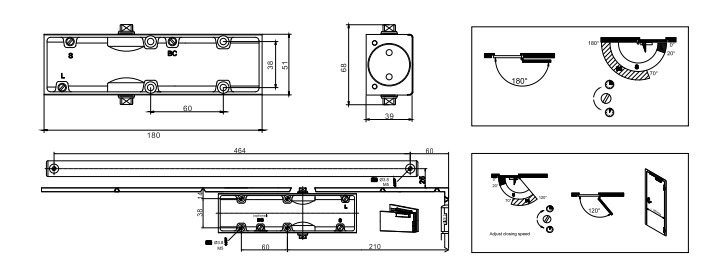

Dimension of Main Body(mm)	Length	180
	Width	39
	Height	51
Weight ( kg )		2.2kg
Passed Durability Test		500,000 cycles

Code	Material	Packing	Carton size
203SL	Aluminum	10 sets/ctn	532729 cm
