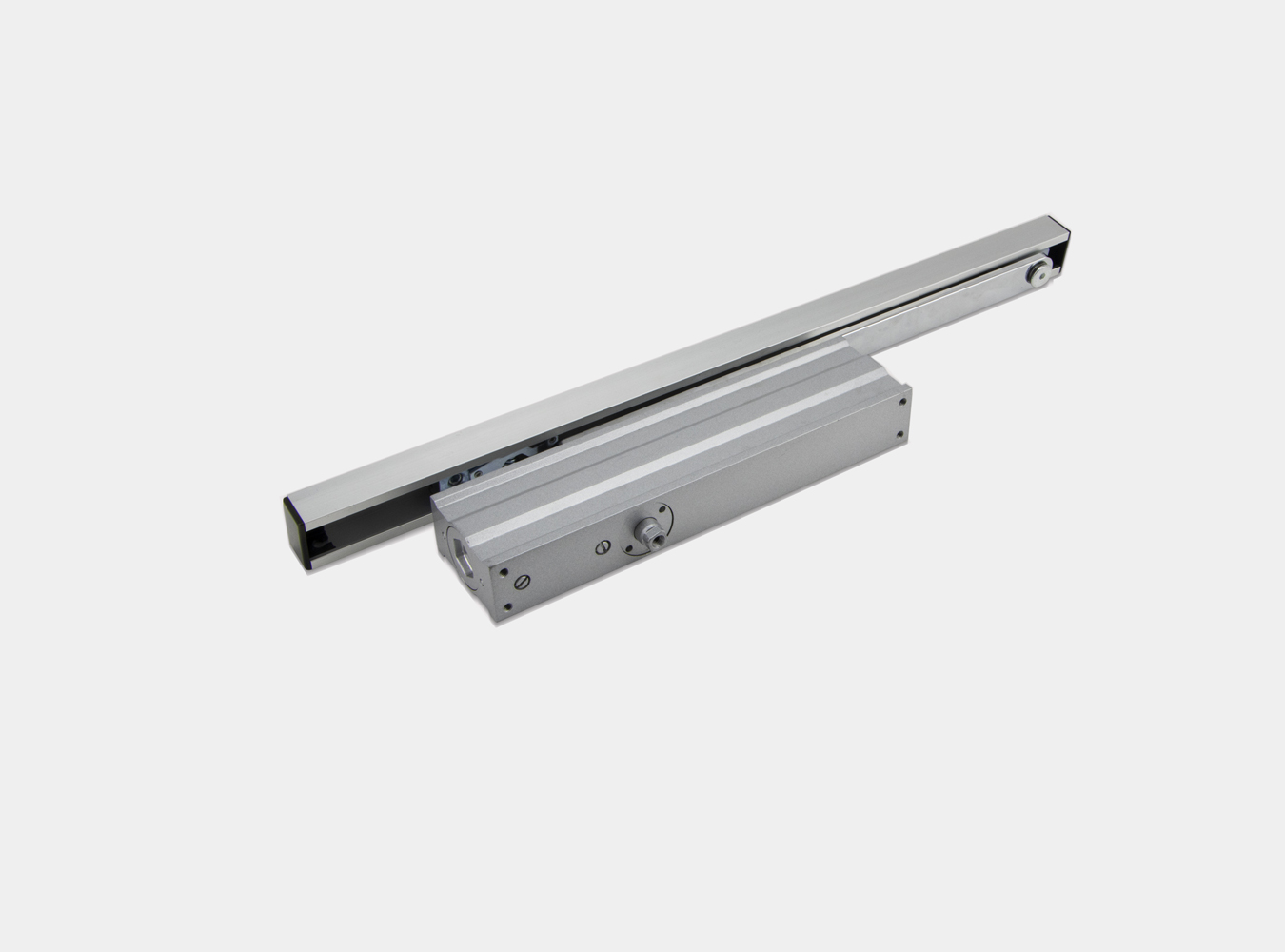

Concealed door closer 103A

Concealed Overhead Closer, "invisibledoor closer

103A Type meet UL standard, with CCCF certified

Precise Aluminum Body with Needle Bearing

Adjustable Closing Latching Speed

Closer body 3 2mm Thickness. Non Handed Installation

Slide Tracking arm with hold-open function

TECHNICAL INFORMATION & FUNCTION
Width of Door ( mm ) Max.		950m
Weight of Door ( kg ) Max.		40-65 kg
Back check Functio		N/A
Max. Open Angle		105°
Hold -Open		Optional
Fire Door		Yes, UL 3 hours Fire Rated door closer
Closing Speed Adjustment	Speed 1	Max Open Angle~10°
	Speed 2	10°~0°
Applicable Temperature		-30℃ To 60℃
Applicability		Can be used for left and right-hand doors
Various Finish		SILVER, GOLD, BRONZE ,,other color upon request

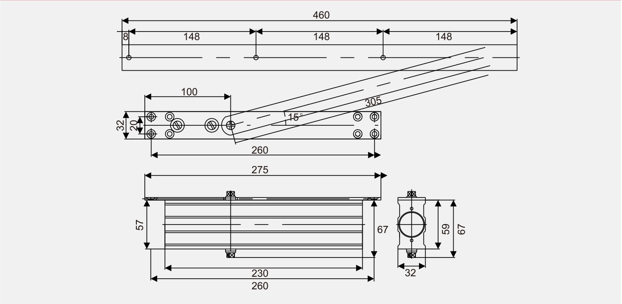

Dimension of Main Body	Length	230
	Width	32
	Height	60
Weight ( kg )		1.91kg
Passed Durability Test		500,000 cycles

Code	Material	Packing	Carton size
103A	Aluminum	10 sets/ctn	55.52323
